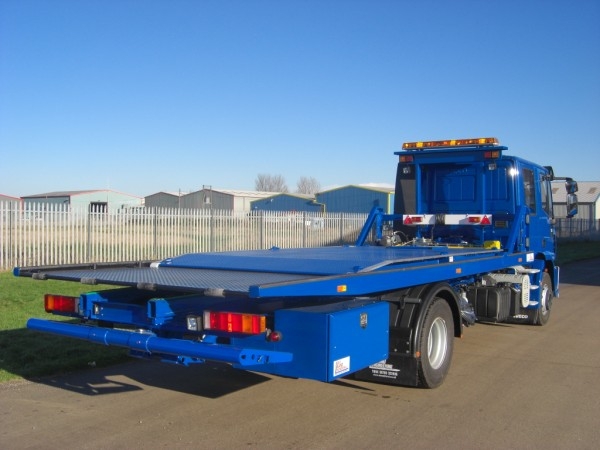

Body details

Main deck;

6000 / 8000 / 12,000 kg capacity body

Body length 20ft to 30ft long

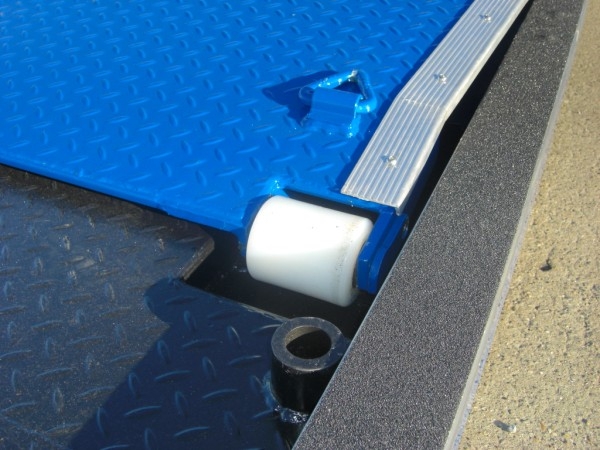

Body running on full nylon sliders

Body width up to 8'2"

Beacon flyer with inbuilt nudge bar

Body side rave with aluminium finisher capping

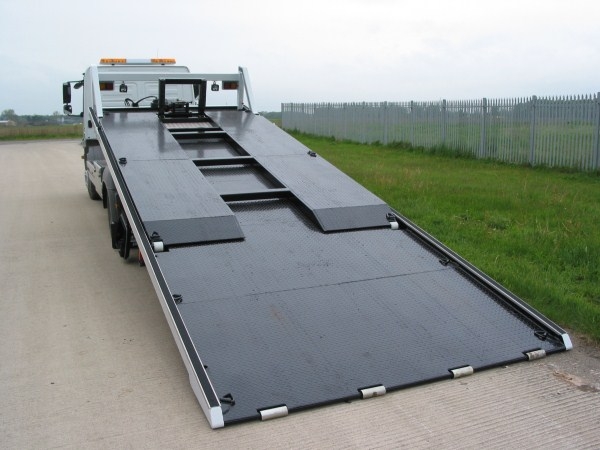

All steel body with welded steel treadplate flooring

Large chassis mounted tool locker 48x18x18”

Stainless steel toolbox handles and hinges

12 deck mounted lashing tie down rings

Chassis body locks

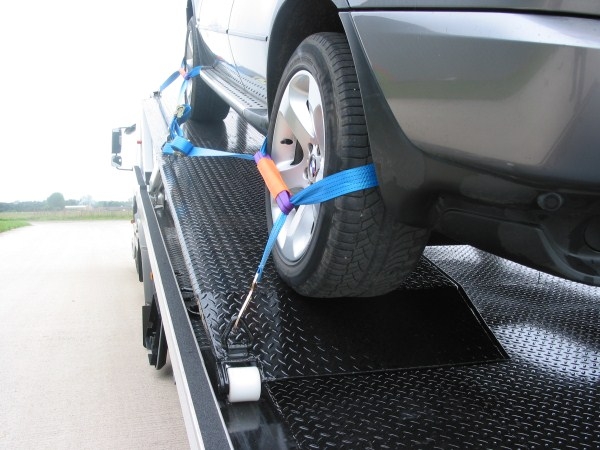

Set of 4 deluxe transporter tie down straps

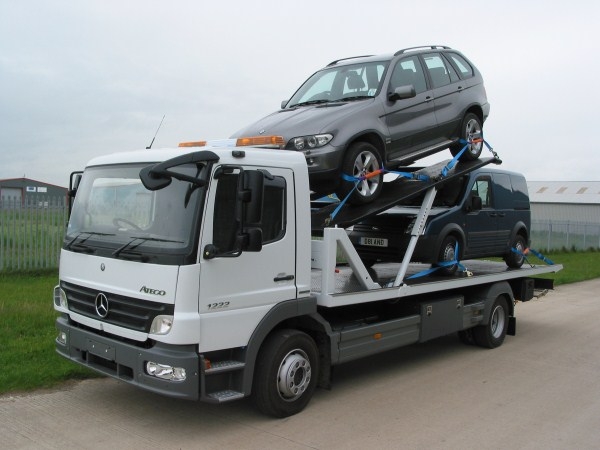

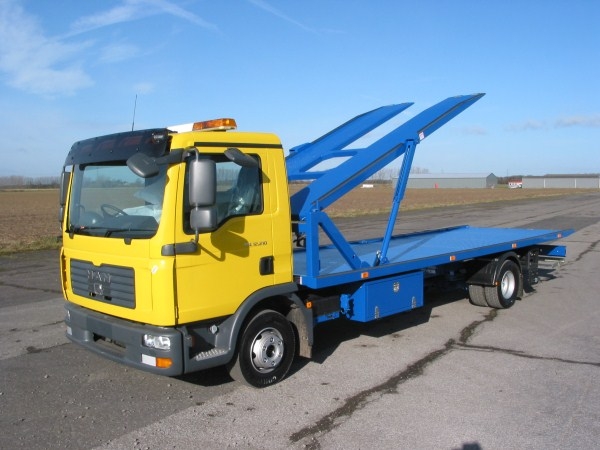

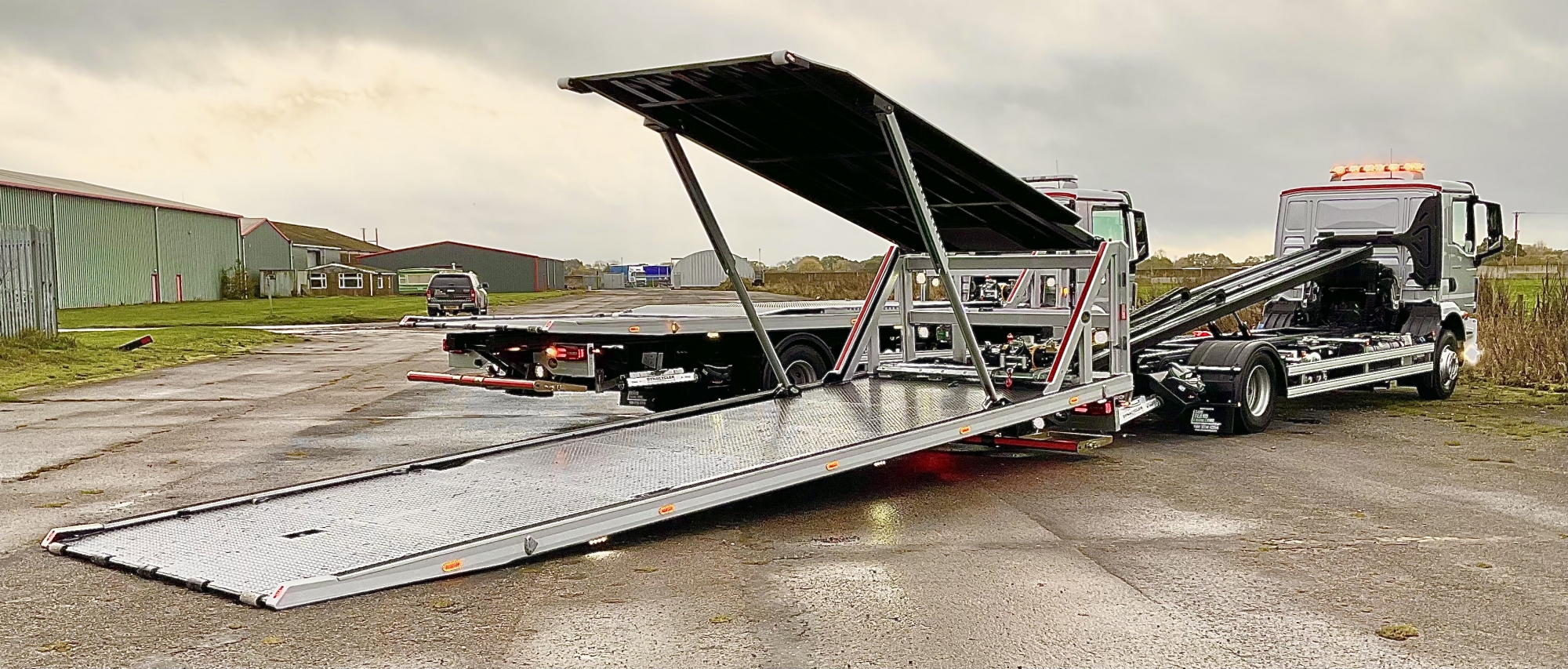

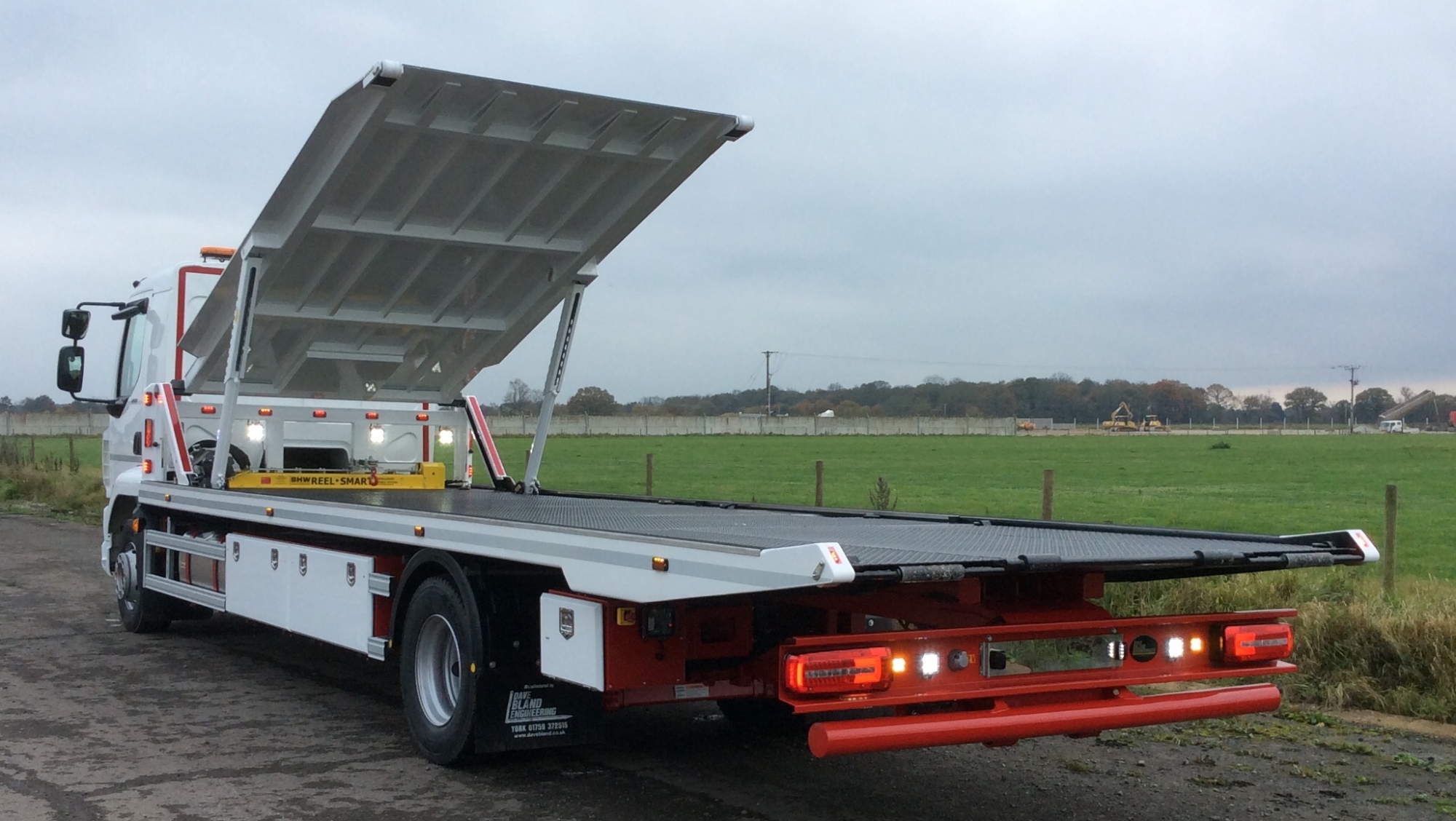

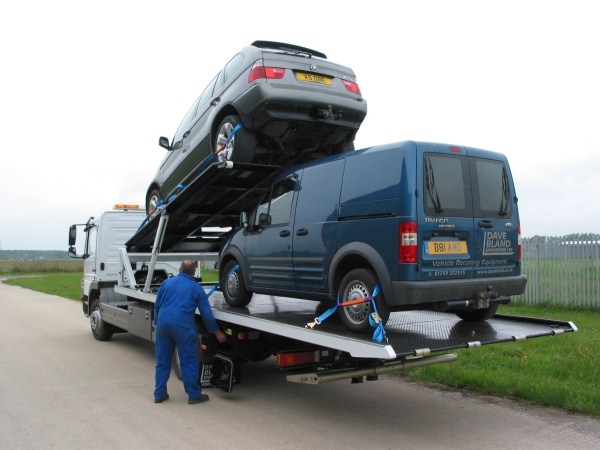

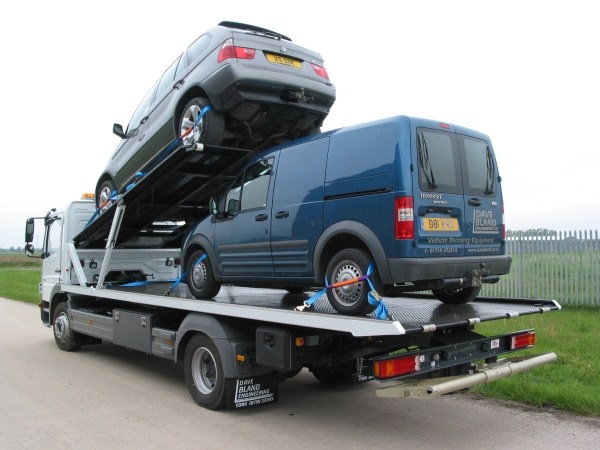

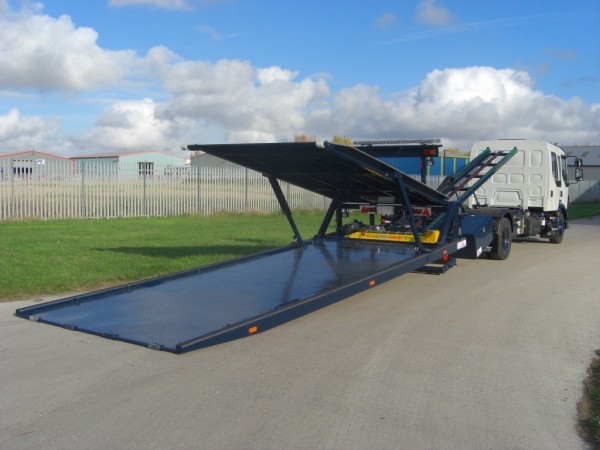

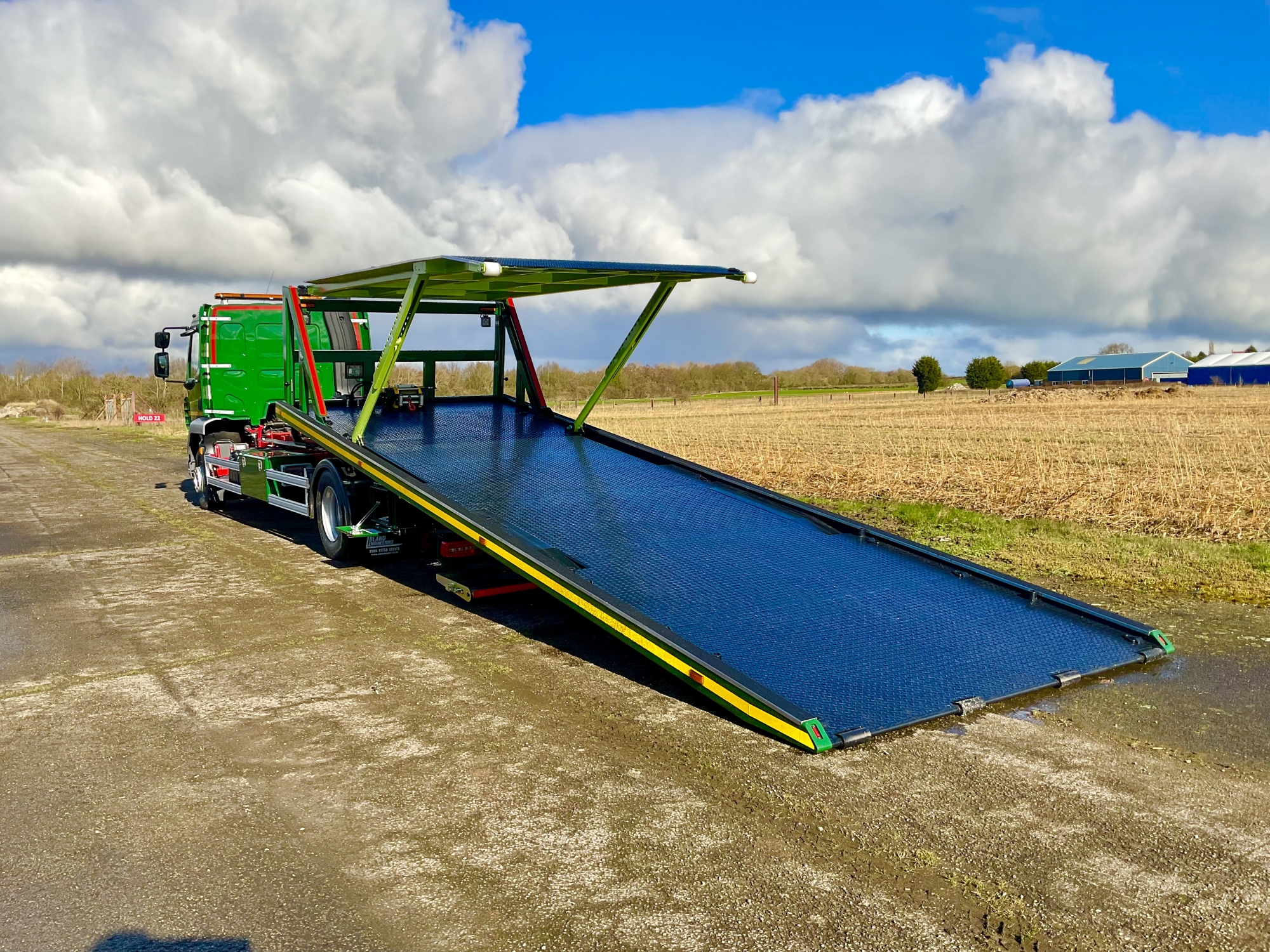

Upper deck design and construction:

2500kg capacity upper deck

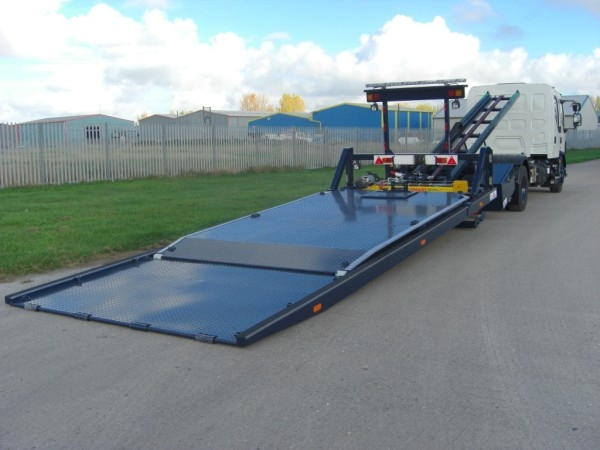

Lie flat upper deck with open centre

Lowering level to lower deck for ease of loading

Deck raised via hydraulic lever and automatic levelling system

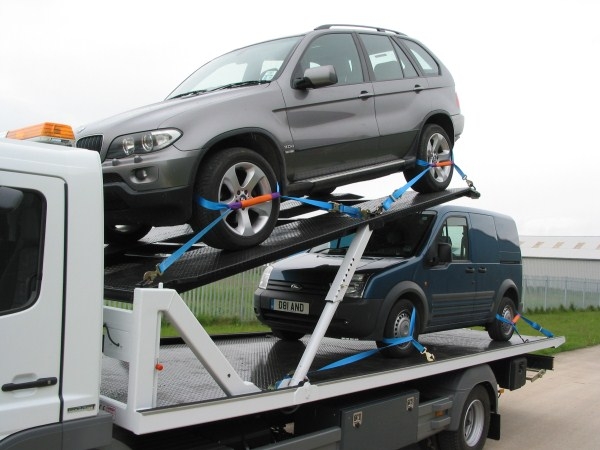

Lashing tie down rings to secure vehicles

Set of 4 deluxe transporter tie down straps

Ram protection covers with securing safety pins

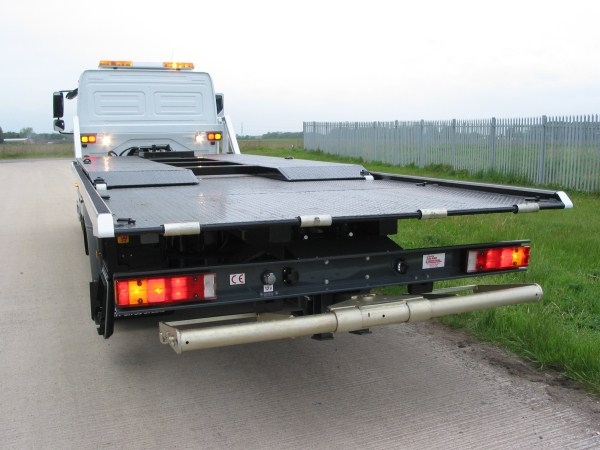

Spectacle lift:

2000kg spectacle lift with flip over head

Twin lift rams-powered up/down

Spec beam power in/out safety lock in open and closed position

1 pair spectacle lift tie down ratchet straps

1 pair wheel space reducing bars

Zinc passivated spectacle lift head


Hydraulic system:

Pto pump cab mounted air switch with handbrake interlock

Chassis mounted hydraulic tank with filter

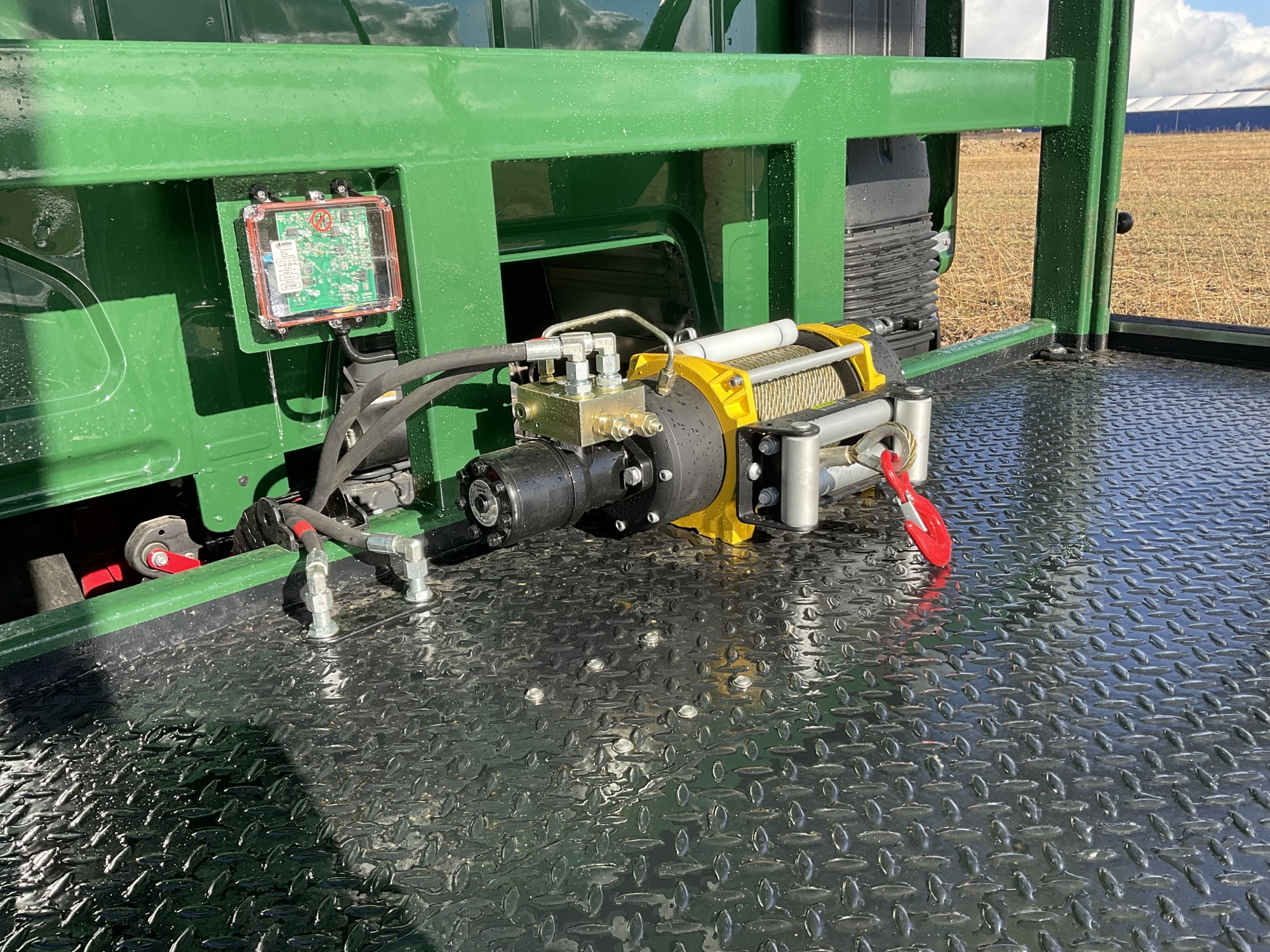

8000 lb hydraulic winch with radio remote and manual override lever

Twin tilt body rams

12ft slide off ram

Lockable illuminated spool valve cover


6 bank spool valve set up

Winch control with electro/air hydraulic control

Slide body on-off

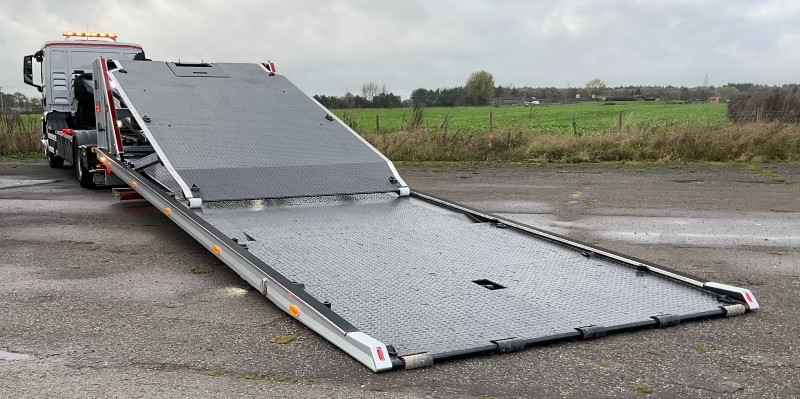

Tip body up-down (including auto tilt)

Spec lift up-down

Spec beam in-out manual safety lock

Upper deck operation



60” LED light with illuminated centre

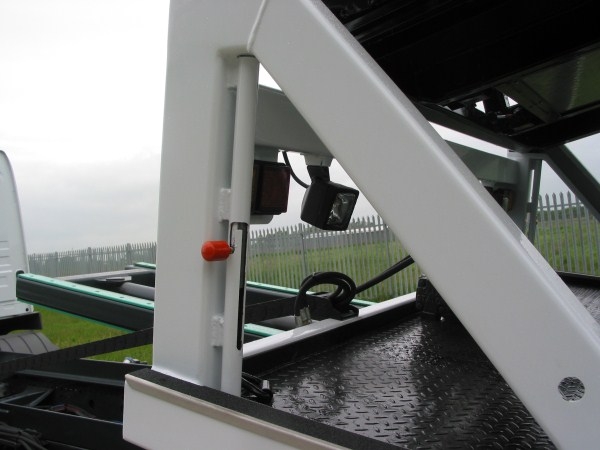

1 pair flyer mounted work lamps

1 pair flyer mounted stop/tail/indicator lamps

Radio remote winch control
