DIMENSIONS

Body will be designed and constructed to suit to specific chassis wheel-base
Overall width of body can be constructed up to 2550mm

BEACON ARCH AND FRONT NUDGE BAR

This is mounted to front of body and enables installation of beacons, work lamps, stop/ tail/ indicator lights
Styled beacon flyer with radius corners
Mounting brackets for stop/tail/indicators
1 pair of work lamps
60” 4 rotator beacon light bar

ALL STEEL BODY

With fully welded steel treadplate flooring
Twin tilt body rams
Double acting hydraulic cylinders with 70mm bores
12ft slide off ram

STAINLESS STEEL TOOL LOCKER

48”x20”x20” fitted to near-side of chassis (where possible)
Fitted with lockable stainless steel handle

BODY SIDE CAPPING

Stainless steel capping fitted to protect body paintwork and is finished with an anti-slip safety tape

VEHICLE SECURING

12 deck mounted lashing tie down rings
Set of 4 deluxe transporter tie down straps with soft restraining loops

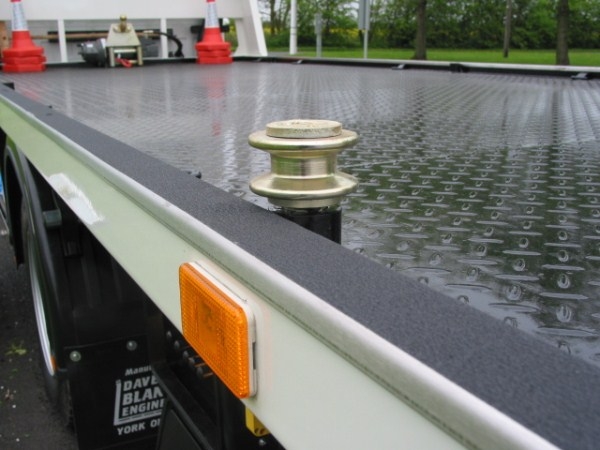

90” WINCH BOBBINS

Enables side winching for the recovery and loading of badly damaged vehicles

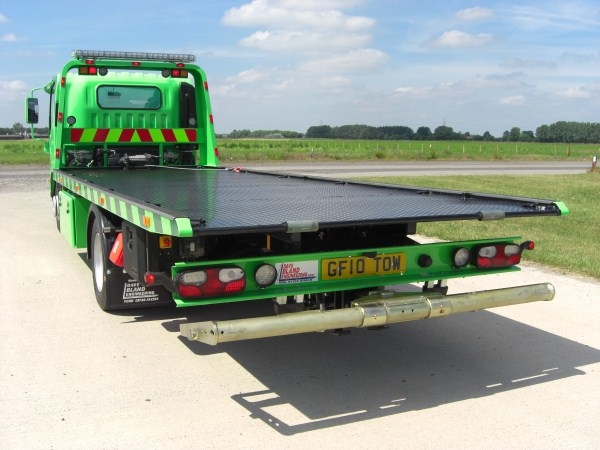

Spectacle Lift

1500 KG CAPACITY

Gold zinc coated spectacle lift head
Fitted with flip over head for easy stowage when not in use
Spec beam is powered in and out with a manual safety lock in the open and closed position
Twin double acting hydraulic cylinders with 70mm bores
1 pair of spectacle lift tie down ratchet straps
1 pair of wheel space reducing bars are fitted to enable the transport of vehicles with small diameter wheels

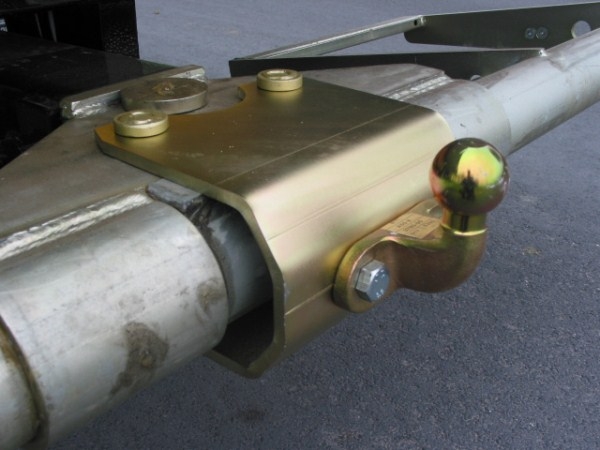

50mm tow ball
Hydraulic System

POWER TAKE OFF HYDRAULIC PUMP

Vehicle gearbox will be fitted with a hydraulic pump
Cab mounted PTO air switch with handbrake interlock
Chassis mounted hydraulic tank with in-built cartridge filter

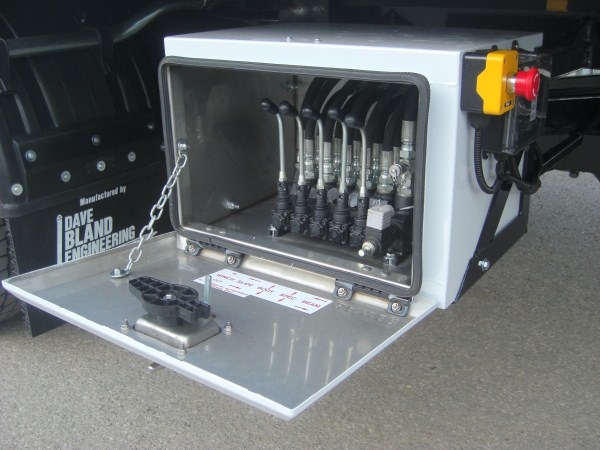

5 BANK SPOOL VALVE SET UP

Winch control with electro/air hydraulic control
Slide body on/off
Tip body up/down (inc. auto tilt)
Spectacle lift up/down
Spec beam in/out manual safety lock
Fully enclosed stainless steel spool valve cover

8000 lb HYDRAULIC WINCH

Fully compliant to new EN 14492-1 regulations
With radio remote and manual override lever
3560kg line pull- Rated line pull of 34.9kN
Single stage planetary gearing, ideally suited to slidebed and spec lift applications
Short drum and long drum options -165mm or 248mm lengths
100mm diameter drum with deep flanges. Extends rope life and assists wrapping
Heavy duty roller guide assembly with greaseways and large diameter rollers
Spring loaded clutch- easy to use
Braking system Spring applied, hydraulic release disc brake providing 100% braking
Electrical

VISION ALERT 60” LIGHT BAR

With 4 rotators
Illuminated centre
1 pair of flyer mounted work lamps and1 pair of flyer mounted stop/tail/indicator lamps
Radio remote winch control
Tow ball & 7 pin plug
24/12V dropper fitted to 7 pin plug
Finishing

Primed and painted in 2 pack
Under body wax-oiled
